HEAVY-DUTY • ERGONOMIC & CONVENIENT SOLUTIONS

Lifting Equipment

We decided to rebuild the hydraulic floor jack from scratch. The result was an all new, service friendly design that showed a clever mix between superb American and European characteristics and functionality.

Meanwhile, our products find their way to more than 60 countries worldwide!

We offer hydraulic jacks with capacities ranging from 1.35 to 32 tons. Besides our Heavy Duty workshop jacks, we have a range of light-weight jacks specifically developed for mobile use.

We only use high quality components and have our production process controlled at every step. All products are tested, third party certified and come with a 3 years no-nonsense hydraulic manufacturers warranty.

No wonder we have more than 500.000 lifting devices in the field!
WINNTECHNOLOGY

In our WINNTECHNOLOGY videoseries we highlight and explain distinctive technologies that seperate our products with those from our competitors. In the first episode, we took a look at Two-Speed Lowering.

Two-Speed Lowering
Your jack will descend slowly under load, yet fast without.

What started out as a distinguishing factor has now become a standard feature for almost all our jacks. The quality, safety and ease of use of our products are – and remain – at the heart of our operations.

In the second episode of WINNTECHNOLOGY we took a closser look into the technologies of our Balloon Jacks, such as their internal stabalizer, adjustable spindles, safety valve and the possibility to use these on (scissor) lifts.

Winntechnology

Hydraulic Jacks

Floor Jacks

Article No.

Cap.

Min. - Max. H.

Size (W x L)

Weight

JTM220000

2,2 T

75 - 465 mm

340 x 700 mm

28,5 kg

JTM300000

3 T

130 - 470 mm

335 x 615 mm

31 kg

Y411350

1,35 T

80 - 375 mm

236 x 501 mm

10 kg

M411355

1,5 T

90 - 360 mm

247 x 481 mm

14,2 kg

Y411202

2 T

86 - 418 mm

282 x 625 mm

22 kg

Y420222

2 T

75 - 500 mm

350 x 705 mm

42 kg

Y420250

2 T

75 - 510 mm

343 x 686 mm

32,5 kg

Y420330

3 T (US)

120 - 450 mm

344 x 618 mm

31 kg

Y420333

3 T

76 - 503 mm

346 x 672 mm

37 kg

Y420336

3,6 T

95 - 540 mm

350 x 688 mm

38,5 kg

Long Chassis Jacks

Article No.

Cap.

Min. - Max. H.

Size (W x L)

Weight

Y420200

2 T

138 - 800 mm

396 x 1311 mm

58 kg

Y420301

3 T

130 - 600 mm

325 x 1400 mm

65 kg

Y420500

5 T

150 - 680 mm

366 x 1505 mm

90 kg

Y421000

10 T

160 - 680 mm

485 x 1635 mm

145 kg

Air Service Jacks

Article No.

Cap.

Min. - Max. H.

Size (W x L)

Weight

Y432024

24 T

215 - 441 mm

265 x 525 mm

40 kg

Y432032

32 T

150 - 289 mm

290 x 480 mm

38 kg

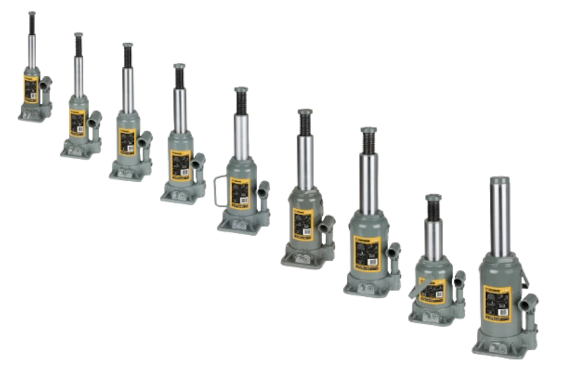

Bottle Jacks

Article No.

Cap.

Min. - Max. H.

Size (W x L)

Weight

Y410200

2 T

158 - 308 mm

96 x 93 mm

2,3 kg

Y410400

4 T

180 - 350 mm

112 x 104 mm

3,3 kg

Y410600

6 T

197 - 382 mm

116 x 116 mm

4,4 kg

Y410800

8 T

205 - 390 mm

120 x 120 mm

5,4 kg

Y411000

10 T

120 - 260 mm

180 x 118 mm

6,4 kg

Y411200

12 T

214 - 399 mm

140 x 135 mm

7,2 kg

Y411500

16 T

225 - 425 mm

140 x 140 mm

8,3 kg

Y412000

20 T

244 - 449 mm

155 x 140 mm

10,5 kg

Y412001

20 T

190 - 340 mm

155 x 140 mm

9 kg

Y413000

30 T

285 - 465 mm

175 x 160 mm

14,6 kg

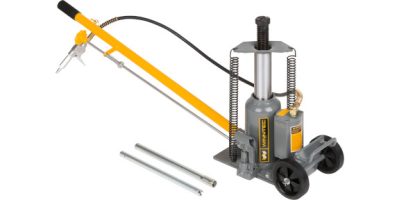

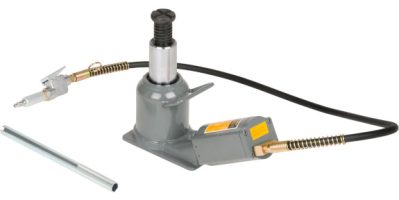

Air Bottle Jacks

Article No.

Cap.

Min. - Max. H.

Size (W x L)

Weight

Y432021

20 T

148 - 260 mm

180 X 115 mm

9 kg

Y432020

20 T

245 - 475 mm

220 x 175 mm

16,5 kg

Y432030

20 T

253 - 483 mm

300 x 150 mm

25,7 kg

Pneumatic Balloon Jacks

Article No.

Cap.

Min. - Max. H.

Size (W x L)

Weight

Y422002

2 T

125 - 360 mm

400 x 400 mm

14,8 kg

Y422012

2 T

125 - 360 mm

400 x 1100 mm

16 kg

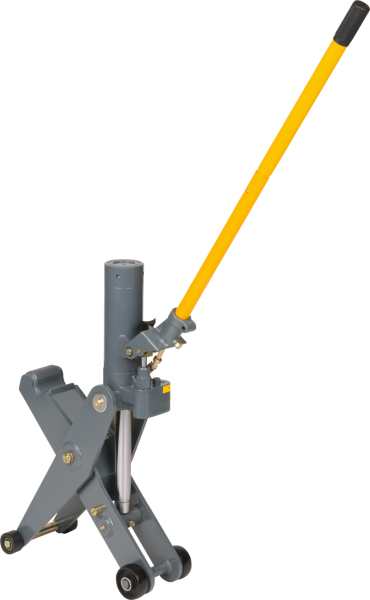

Fork Lift Jack

Article No.

Cap.

Min. - Max. H.

Size (W x L)

Weight

Y454000

4-5 T

65 - 425 mm

680 x 725 mm

45 kg

Leading the lifting game since 2002

Reaching new Heights

Scissor Lifts

These scissor lifts, which are designed for on-ground installation, extend to 2000mm to fit the majority of automobiles and SUVs. The dual circuit hydraulic system has a self-lock feature, and the double tandem cylinders are automatically balanced. It is further equipped with a cylinder protection system, integrated PLC computer controller, and robust powder-coated steel structure.

Y475254 Scissor Lift

Specifications




Width

480 mm

Operation Pressure

0.6-0.8 Mpa

Length

1400 mm

Rated Voltage

25 Mpa

Min. H.

105 mm

Power Voltage

230V

Max. H.

1000 mm

Motor Power

2.2 KW

Capacity

3500 kg

Lifting Time

50 - 60 s.

Weight

690 kg

Y475230 – Y475400 Scissor Lift

Specifications




Width

585 mm

Operation Pressure

0.6-0.8 Mpa

Length

1460 mm

Rated Voltage

25 Mpa

Min. H.

105 mm

Power Voltage

230/400V

Max. H.

1900 mm

Motor Power

2.2 KW

Capacity

3200 kg

Lifting Time

50 - 60 s.

Weight

810 kg

Y475052 Razzo 1

Mini lift with mechanical safety lock. Work on your vehicle at the right height for bodyshops, garages, tire-shops, detailing & wraps. Extremely versatile lift, operated with a industrial, airhydraulic footpump, which allows you to quickly lift and support any small/large car, vans and SUVs.

Specifications




Width

400 mm

Length (arms withdrawn)

1120 mm

Length

1620 mm

Length (arms extended)

1620 mm

Min. H.

110 mm

Operation

Hydro-Pn.

Max. H.

630 mm

Hydro-Pn. pump calibration

700 Bar

Capacity

1.800 kg

Inlet Air Pressure

7-10 Bar

Weight

113 kg

Y475051 IN-SYNCH 2

Portable, easy to maneuver and offering open undercarriage access. Patented valve blocks guarantee perfectly smooth in-sync lifting and lowering. Quick-connect fittings conveniently connect the pump and lifts, making it easy to assemble/disassemble and stow individual components.

Specifications




Width

300 mm

Lifting Point Spread (min.)

800 mm

Length

1910 mm

Lifting Point Spread (max.)

1320 mm

Min. H.

85 mm

Operation

Hydro-Pn.

Max. H.

455 mm

Hydro-Pn. pump calibration

350 Bar

Capacity

2.500 kg

Inlet Air Pressure

7-10 Bar

Weight

95 kg

Leading the lifting game since 2002

Reaching new Heights
